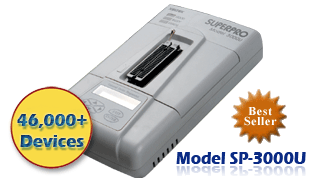

SuperPro 3000U

A PROGRAMMER WITHOUT A DESIRED DEVICE SUPPORT IS A HEAP OF METAL!

Features:

• Supports 46,402 IC devices from 198 manufacturers and continuing • Two programmers in one: PC mode for engineering and Stand-alone mode for production • ISP Capability. • Programmer and tester of TTL/CMOS logic ICs and memories. • Cluster operation in stand-alone mode provides for high volume programming environment • Fastest low-cost programmer in the market. • Advanced hardware design for low-voltage, low noise, fast operation, and compactness • Universal pin-drivers for up to 100 pins (option) • Standard 48-pin DIL ZIF Socket. Compatible with 300/600 mil devices up to 48-pin. • 430+ socket adapters including 180+ FBGA packages. Adapters sold separately. • Microsoft Windows 98/Me/NT/2000/XP/VISTA compatibility • CE and ROHS Compliant • Click here for various gang programming solutions and comparison more detailed feature information

Specifications:

Device Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration Serial PROM, FLASH Memory (NOR and NAND), BPROM, NOVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic.

Socket Adapters Supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, VQFP, TSOP, TSOPII, SOP, P SOP, TSSOP, SON, EBGA, FBGA, VFBGA, μBGA, CSP, SCSP, etc.

PC Interface: USB

Stand-alone mode operation Storage Media: Compact Flash Card (Optional)

Optional Accessories: PEP3000 Pin-driver Expansion Pack, Socket Adapters, Compact Flash Card

Device Updates:

XELTEK updates software and device algorithm regularly.

You may download the current software version free of charge at .

Updates are available by mail at a nominal charge.

XELTEK also adds devices upon customer's request at its option.

Volume Production Solutions:

By operating multiple programmers simultaneously you can use them in high volume production environment.

Clustering of programmers provides for flexible and easy way for volume production.

Optional Compact Flash card is necessary to store user data, and device algorithm in stand-alone operation. For most operation. 512MB size is recommended. Click here for more information about Volume Production Solution

Warranty Support:

Standard 1 Year Warranty: Included with purchase of SuperPro 3000U. Covers device update and repair. Xeltek pays Fedex GND when shipping product back to customer. Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase. We charge $249 for repairing Superpro 3000U Programmer after one-year warranty period expires. Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (PST).

HARDWARE & ELECTRICAL SPECIFICATIONS:

· Power supply : Input 100V-240VAC,Output 12VDC/2.5 Amp.

· Programmer unit dimension : 240(L) x 150(W) x 50(H) mm

· Gross shipping weight : 5 Lbs (2.27 kg)

Items included:

· SuperPro 3000U Programmer

· AC adapter

· Software CD

· USB Cable

· User's Manual
