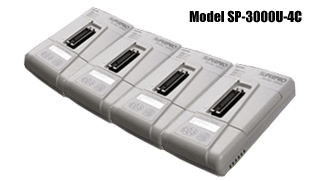

SuperPro 3000U Cluster

SuperPro 3000U-Cluster is composed of x4 units of our popular SuperPro 3000U programmer. As a SuperPro 3000U-Cluster owner, users get two programmers packaged into one! SuperPro 3000U-Cluster owners, have the benefit of using it as:

A universal programmer for engineering application.

Secondly, as a manufacturing programmer for volume production.

For production operation, Superpro 3000U-Cluster

operates in stand-alone (without a PC attached) mode.

Each unit supports 46,402 devices from 198 manufacturers

including EPROM, EEPROM and Flash memory, PIC, AVR

and other popular microcontrollers and PLDs. By operating

multiple programmers simultaneously you can use them in high

volume production environment.

Features :

• Supports 46,402 devices and growing, more than any traditional gang programmer in the market

• Operates in stand-alone mode without a PC attached for volume production

• Start with a cluster of 2-4 units and add more units as the need grows

• No experienced operator with the knowledge of PC or Windows necessary

• 430+ socket adapters including 180+ FBGA package types supported

• CE and ROHS Compliant

• Most effective, expandable, and low-priced gang programming solution available in the market

• Click here for various gang programming solutions and comparison

more detailed feature information

Specifications:

Device Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration Serial PROM, FLASH Memory (NOR and NAND), BPROM, NOVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic.

Socket Adapters Supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, VQFP, TSOP, TSOPII, SOP, P SOP, TSSOP, SON, EBGA, FBGA, VFBGA, μBGA, CSP, SCSP, etc.

PC Interface: USB

Stand-alone mode operation Storage Media: Compact Flash Card (Optional)

Optional Accessories: PEP3000 Pin-driver Expansion Pack, Socket Adapters, Compact Flash Card

Device Updates:

· XELTEK updates software and device algorithm regularly.

· You may download the current software version free of charge at .

· Updates are available by mail at a nominal charge.

· XELTEK also adds devices upon customer's request at its option.

Warranty Support

Standard 1 Year Warranty: Included with purchase of SuperPro 3000U. Covers device update and repair. Xeltek pays Fedex GND when shipping product back to customer. Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase. We charge $249 for repairing Superpro 3000U Programmer after one-year warranty period expires. Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (PST).

HARDWARE & ELECTRICAL SPECIFICATIONS:

· Power supply : Input 100V-240VAC,Output 12VDC/2.5 Amp.

· Programmer unit dimension : 240(L) x 150(W) x 50(H) mm

· Gross shipping weight : 24 Lbs (10.91 kg)

Items included:

Four SP-3000U programming units

DIP48 pin socket

Four 256MB Compact Flash Cards

AC adapter

Software CD

USB Cable

User's Guide
