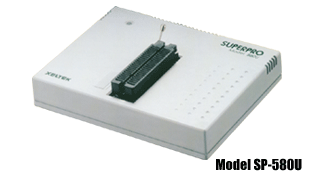

SuperPro 580U

SuperPro-580U USB Interfaced Ultra-high Speed Universal Device Programmer Device List Software Download Product Manual Warranty Support Optional Products

Features :

• Supports 34,101 IC devices from 183 manufacturers and continuing .

• High speed programming. 32Mb FLASH 13.5 sec (Program+verify)

• ISP (In-System Programmable) devices supported

• USB Interfaced

• 430+ socket adapters including 150+ FBGA package types supported

• CE and ROHS Compliant

• Very low-cost, high performance, and very compact

• Highest value in the industry $0.035/device supported

more detailed feature information

Speed comparison:

Type

Program (sec)

Verify (sec)

Program+verify (sec)

Memory Size (ea)

28F320W18

4.5

13.5

32Mb FLASH

28F640W30

64Mb FLASH

AM29DL640E

38.3

10.6

48.9

MB84VD21182DA

9.6

2.9

12.5

16Mb FLASH

MB84VD23280FA

LRS1381

13.3

4.6

19.9

M36W432TG

11.8

16.4

MBM29DL323TE

17.5

5.5

23.3

AT89C55WD

2.1

3.1

20KB MCU

P89C51RD2B

0.9

64KB MCU

Specifications :

• Device Supported :

EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration Serial PROM,

FLASH Memory (NOR and NAND), NVRAM, SPLD, CPLD, EPLD, Firmware HUB,

Microcontroller, MCU, Standard Logic .

• Socket Adapters Supported :

DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, VQFP, TSOP, TSOPII, SOP, P SOP, TSSOP, SON,

EBGA, FBGA, VFBGA, μBGA, CSP, SCSP, etc .

• PC Interface: USB

• Optional Accessories: Package Adapter

Device Updates :

• Are you looking for a new device update support in the future? Please check on Superpro

3000U programmer. Customer requested device update service is not available on this

model .

Warranty Support :

Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase. Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (PST ).

Hareware & Electrical Specification :

• Power supply : Input 100V-240VAC, Output 12VDC

• Programmer unit dimension : 320(L) x 300(W) x 85(H) mm

• Gross shipping weight : 4 Lbs (1.8 kg )

Items included :

• SuperPro 580U Programmer

• AC adapter

• Software CD

• USB Cable

• User's Manual
