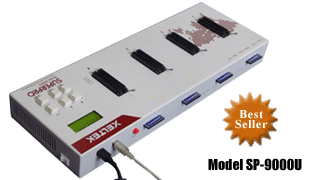

SuperPro 9000U

SuperPro-9000U USB Interfaced Ultra-Fast 4 programming modules Universal Gang Programmer Device List Software Download Product Manual Warranty Support Optional Products

Features:

• 4ea high speed 48pin DIP programming sockets

• Supports 40,485 devices and growing, more than any gang programmer in the market.

• 430+ socket adapters including 150+ FBGA package types supported

• Operates in both PC and stand-alone mode without a PC attached for volume production

• Asynchronous fast programming. Each module is independent from one another.

• Programming starts automatically when a chip is inserted

• High speed programming

• ISP (In-System Programmable) devices supported

• CE and ROHS Compliant

• No experienced operator with the knowledge of PC or Windows necessary

• Four 512MB compact flash cards included

more detailed feature information

Device Updates :

• XELTEK also adds devices upon customer's request at its option .

• We update new devices onto Superpro3KU regularly and also upon customer request. Device update is free of charge during the warranty period of the progammer purchased. We do not have free device update service on other programmers. If you are interesed in the new device update service please purchase Superpro3000U programmer .

Warranty Support :

• Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase .

• Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 7:30am to 4:30pm (PST).

Specifications :

• Supported devices: EPROM, EEPROM, Serial EPROM, Paged EPROM, Serial PROM, FLASH EPROM( NOR and NAND), NONVRAM, SPLD, CPLD, EPLD, Firmware HUB, MCU, Microcontroller, SRAM and Standard logical device. With voltages down to 1.5V

• Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, TSOPII, SOP, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, μBGA, CSP, SCSP etc .

• PC interface: USB

• Stand-alone Interface: 16 Character by 4 line back-lighted LCD, 6 standard hard keys, 4 Compact Flash cards (removable, 64MB as standard which can support up to 512Mb devices, necessary for both PC mode and stand-alone mode )

• Standard Package includes: Programmer main unit, external power supply, 4 CF cards, USB cable, User's Guide, software CD .

• Optional accessories: Package adapters

Hardware & Electrical Specifications :

• Power supply : Input 100V-240VAC

• Output : DC 24V/5Amp

• Main unit dimension: 540(L) x 195(W) x 58(H) mm

• Packing Box dimension: 608(L) x 360(W) x 150(H) mm

• Shipping Weight : 19 Lbs (8.5 kg)

Items included :

• SuperPro 9000U Programmer

• Hard case for programmer

• Four 512MB Compact Flash Cards

• AC adapter

• Software CD

• USB Cable

• User's Manual
