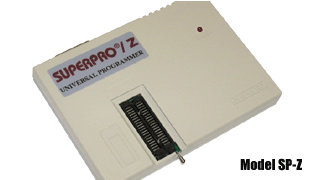

SuperPro Z

Features :

• Supports 3,469 devices and growing .

o Memory: EPROM, EEPROM, FLASH, Serial EEPROM up to 8Mb .

o Microcontroller: AMD, ATMEL, AVR, DALLAS, INTEL, ISSI, LGS,

MICROCHIP PIC, PHLIPS, SIEMENS, SST,TEMIC, WINBOND, WSI,

ZILOG etc .

o PLD: AMD, LATTICE, ATMEL, CYPRESS, NSC, ST, ICT etc .

• Advanced pin-driver technology .

• High programming speed .

• Self diagnostic test at startup and Over current protection built in .

• High reliability .

• CE and ROHS Compliant

• Manufacturers approved algorithms .

• Available package adapters: PLCC, QFP, TSOP,SOIC, SOP, SSOP etc .

• Supports Windows 2000/NT,Windows98/95/XP/ME

• Connect to PC (desktop and notebook) via printer port .

• ZIF40 socket standard .

• Portable design .

• Auto generation of electronic serial number in chips .

• User editable BATCH function .

• Powerful buffer management and edit function .

• Auto recognition of file format .

• TTL/CMOS test and auto find .

Device Updates :

• Are you looking for a new device update support in the future? Please check on

Superpro 3000U programmer . Customer requested device update service is not

available on this model .

Warranty Support :

• Programmer is warranted to be free of manufacturing or workmanship defects for

one year from the date of purchase. Online Technical Support is also available 24

hours or you may call us during our business hours through Friday 8:30am to

5:30pm (PST ( .

Hardware & Electrical Specifications :

• AC Adapter : Input AC 220V or 110V

• Device socket : One 40 Pin ZIF socket

• Output : DC 12V/1.5Amp

• Programmer Dimension : 7 3/4"(L) x 5 1/2"(W) x 3/4"(H (

• Shipping Weight : 4 Lbs (1.8 kg)

Requirements & Compatibility Information :

• SuperproZ and SuperproLX programmers are entry level low-cost models, which

do not have internal processing capability. It relies on the PC host CPU and memory

for programming and other functions. As such, there may be some timing variations

caused depending on PC CPU and operating system used. As a result, some later

devices which are timing sensitive may be affected in their programming

performance. Also, due to it's limited hardware architecture, inconsistent operation

may occur with some models of later WinXP systems. When this occurs, we

recommend you to try on a lower speed system and when this does not solve the

issue, contact us for upgrade to one of the later USB models .

Items included :

• SuperPro Z Programmer

• AC adapter

• Software CD

• Parellel Cable

• User's Manual
