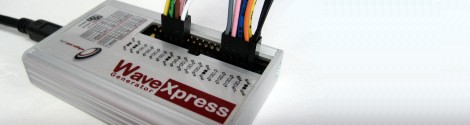

Wave Generator Xpress is a high speed USB 2.0 PC-based digital pattern generator or arbitrary digital waveform generator.

Not sure which product is right for your needs?
The Product Selector Guide provides a brief summary table of key features for each Byte Paradigm product.

Benefits

Wave Generator Xpress is an output digital device for 16 bits pattern generation. This pattern generator allows up to 50 MHz cycle-accurate operation. Such a functionality is essential to stimulate the inputs of electronic devices and boards.

As a a compact unit controllable from PC on USB, it is the ideal companion to your FPGA-based or other embedded computing prototyping board. WG Xpress Digital Pattern Generator targets functional testing on prototype board and integrated circuits.

1.       Fast and accurate digital pattern creation

2.       No need for expensive and oversized test and measurement equipment

3.       Convenient digital signal generator companion for your mainframe logic analyzer

4.       Allow each designer have its own personal stimulus source

5.       Complements the test environment in embedded system development - lets you control and access your embedded processor peripherals

6.       The numerous PC interfaces allow easy data handling and advanced automated uses, including direct control from your own C/C++ and VB environments

Applications

1.       Post-manufacturing ASIC / SoC manual bench functional testing

2.       FPGA, digital board and DAC input stimulus generation for functional testing and debugging

3.       IP validation on prototyping board

4.       Custom digital interface access

5.       VHDL / Verilog design environment -to-board prototype digital stimuli generation

What is included?

1.       Wave Generator Xpress device

2.       USB cable mini-B to USB type A (2 meters long)

3.       Set of colored flying lead wires

4.       License for ADWG mode of operation in 8PI Coontrol Panel software
Win32 GUI
TCL/tk scripting interface
C/C++ API
Unlimited upgrades - free unlimited software download
