8PI Control Panel Software
|
|
|

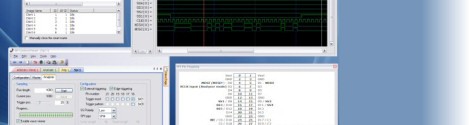

8PI Control Panel software lets you access the numerous GP Series and Xpress series devices features with coherent sets of functionalities grouped into modes of operation. Each mode of operation targets a specific application to offer the maximum flexibility during test, analysis and debug of your electronic system.
Download 8PI Control Panel NOW.
Multiple modes of operation
|
Mode of operation
|
|
GP Series
|
Xpress Series
|
Availability
|
|
ADWG
|
(Arbitrary Digital Waveform Generator) : pattern generator application
|
GP# BASE
|
Wave Generator Xpress
|
Now
|
|
Analyser
|
Logic Analyser application
|
GP# BASE
|
n.a.
|
Now
|
|
JTAG
|
JTAG port controller
|
GP# BASE
|
n.a.
|
Now
|
|
SPI
|
4- and 3-wires serial protocol / SPI-like protocol master and analyser
|
Requires extra license
|
SPI Xpress
|
Now
|
|
I²C
|
I²C protocol master and analyser
|
Requires extra license
|
I²C Xpress
|
Now
|
* Please contact us for any other license combination
3 user interfaces for each mode of operation:
 Windows GUI, for fast & intuitive use.
TCL/tk interface, for tasks automation and quick command line access.
C/C++ DLL, enabling direct call of the device functionalities from any environment able to call C/C++ functions.
Click here for the C/C++ and TCLK/tk interfaces documentation
|
