The SPI mode of operation license for the 8PI Control Panel transforms your GP Series device into a SPI protocol exerciser and analyser.
It allows operation on standard SPI and non-standard 4-wires and 3-wires serial protocol interfaces up to 50 Mbps data rate.

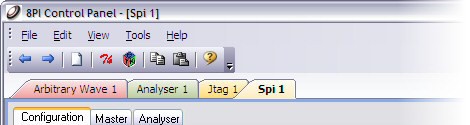

The SPI mode of operation is added to the 8PI Control Panel upon the purchase of a single license per device and the use of the proper license file (please send us a request, mentioning your device serial number). The SPI mode of operation provides the usual GUI, TCL/tk and C/C++ API user interfaces.

SPI mode of operation requires 8PI Control Panel Software (download here). Additional license required for GP Series only. SPI Xpress device is delivered with SPI mode of operation and does not require any additional license.

Applications

                Master side chip-to-chip communication emulation

                SPI-based flash memory access

                SPI system development and debug

                Custom 3-wires and 4-wires serial protocol communication from PC

                RF chip characterization and test through 4- and 3-wires serial interface deriving from the DigRF protocol

                SPI traffic analyzer
